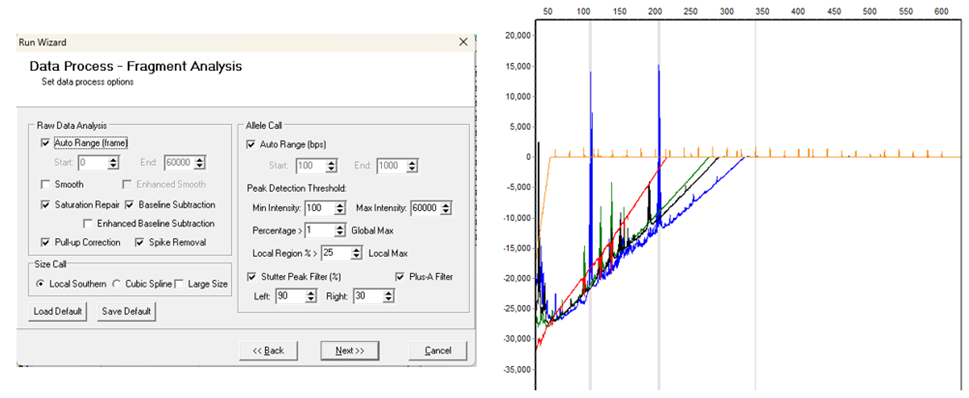

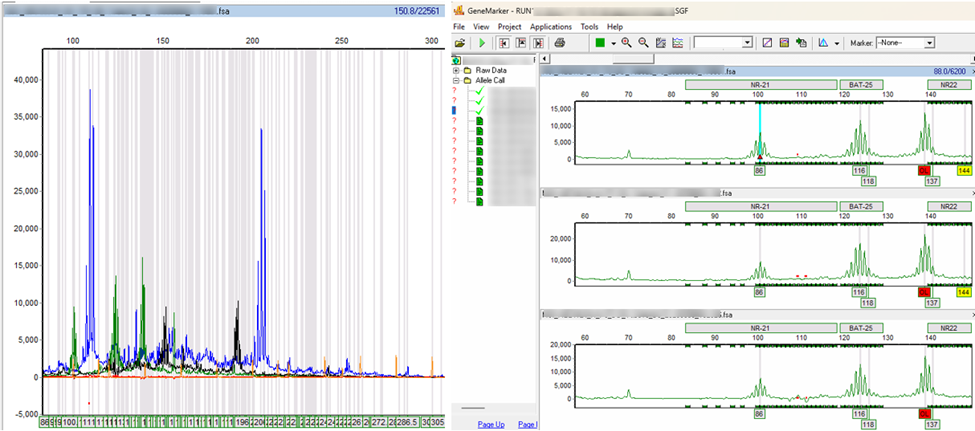

After analysis, the egram for one or more of the dye channels has a negative Y-axis range at the low MW, and slopes upward to 0

Cause is most likely due to highly saturated ion front (a long stretch in the dye at low MW where it’s flat and around 32,700 RFU

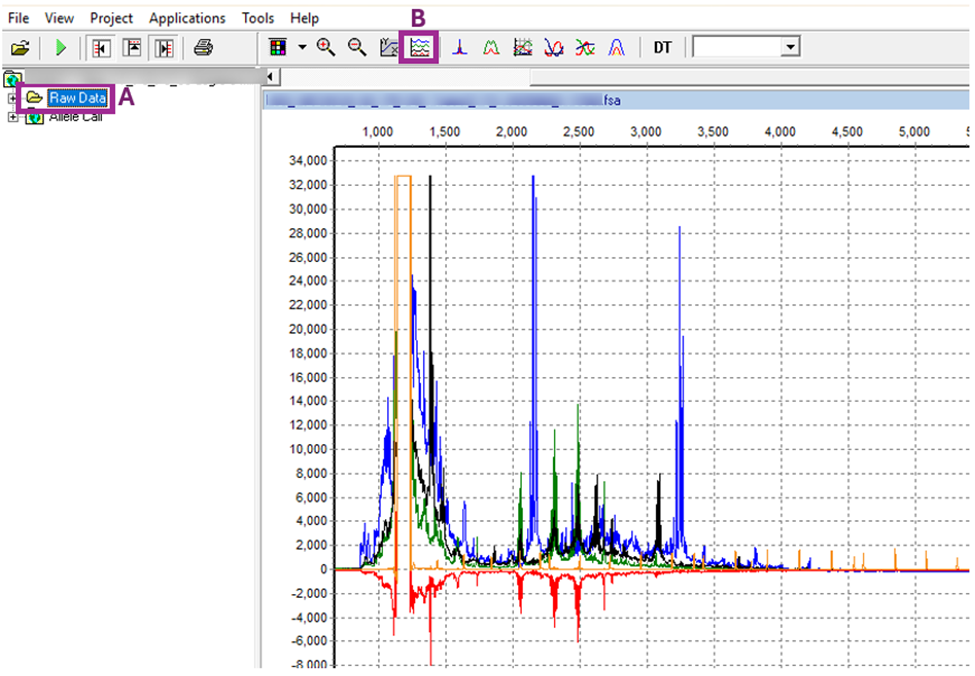

1. 1. Open the raw data folder at the top of the file name tree

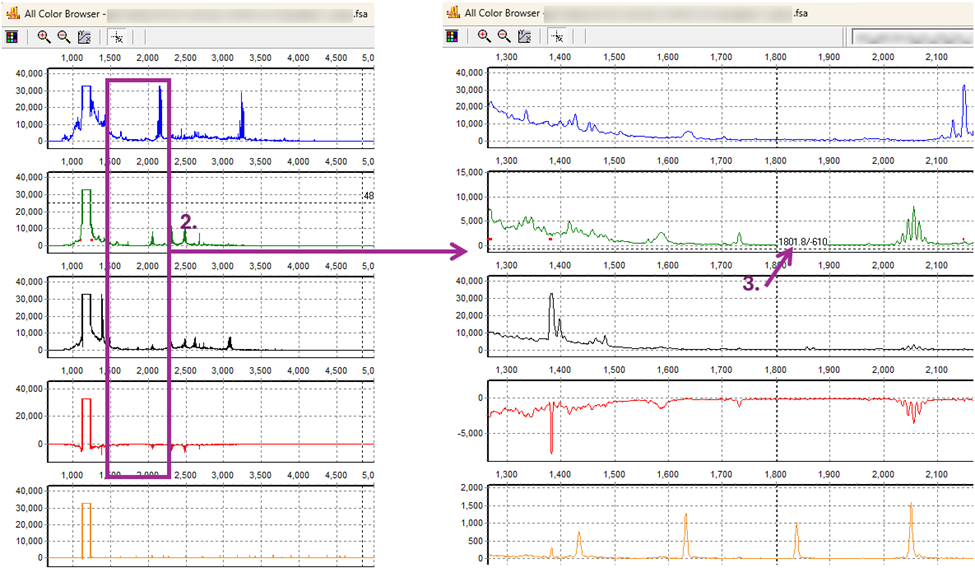

   2. Zoom into the area between the ion front and the first ILS peak
   3. Take note of the raw data frame number (X-axis) in this region
   4. Return to the analysis template, second screen (Data Process Options)

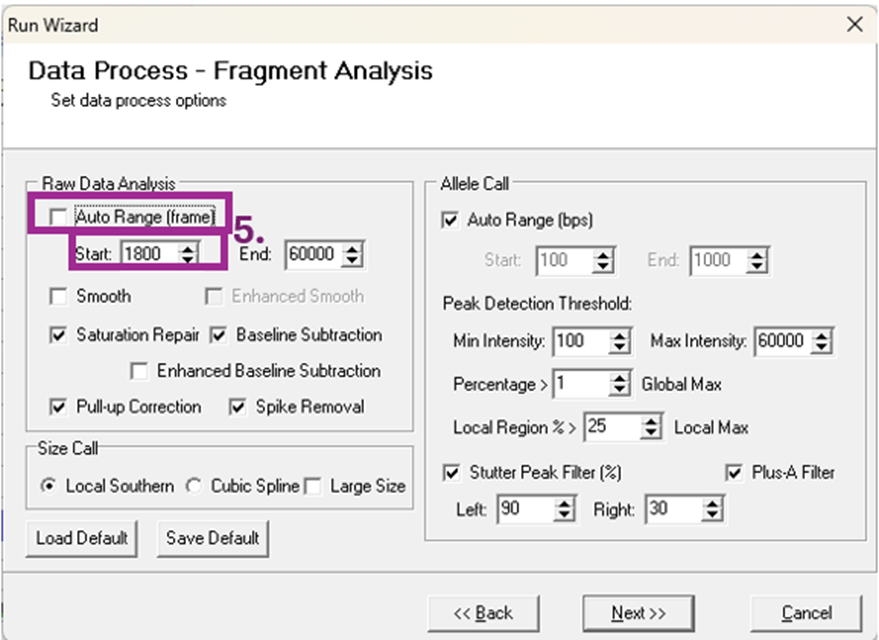

   5. Uncheck Auto-Range (frame) and enter the number noted in iv.
   6. Complete the analysis using this setting
